Products Detail
Type G-GC MSHA
Standard :
• UL listed
• MSHA listed
Category :
Wires & Cables
Tags :
2000V, Copper, CPE Jacket, EPR Insulation
Application :
• For use in stationary, underground, or surface mining applications. For use with drills and pumps, and other portable power applications where equipment grounding is required.
Structure :
• Conductors ：Annealed flexible stranded tin copper.
• Separator ：Tape separator between conductor and insulation.
• Insulation ：Ethylene-propylene rubber (EPR) Color black/white/red.
• Grounding conductors ：Annealed flexible stranded tin copper, green/green/yellow EPR insulation.
• Assembly ：Power and grounds cores cabled together to form a round core.
• Filler ：Rubber filled binder tape over core.
• Jacket ：Black heavy duty CPE thermosetting compound.
Standard :
• UL listed
• MSHA listed
Performance :
• Oil resistant.
• UV resistant.
• Voltage：2000V.
Details
| Material : | Copper |
|---|---|
| Voltage : | 2000 V |
| Working Temprature : | |
| Tags : | 2000V, Copper, CPE Jacket, EPR Insulation |

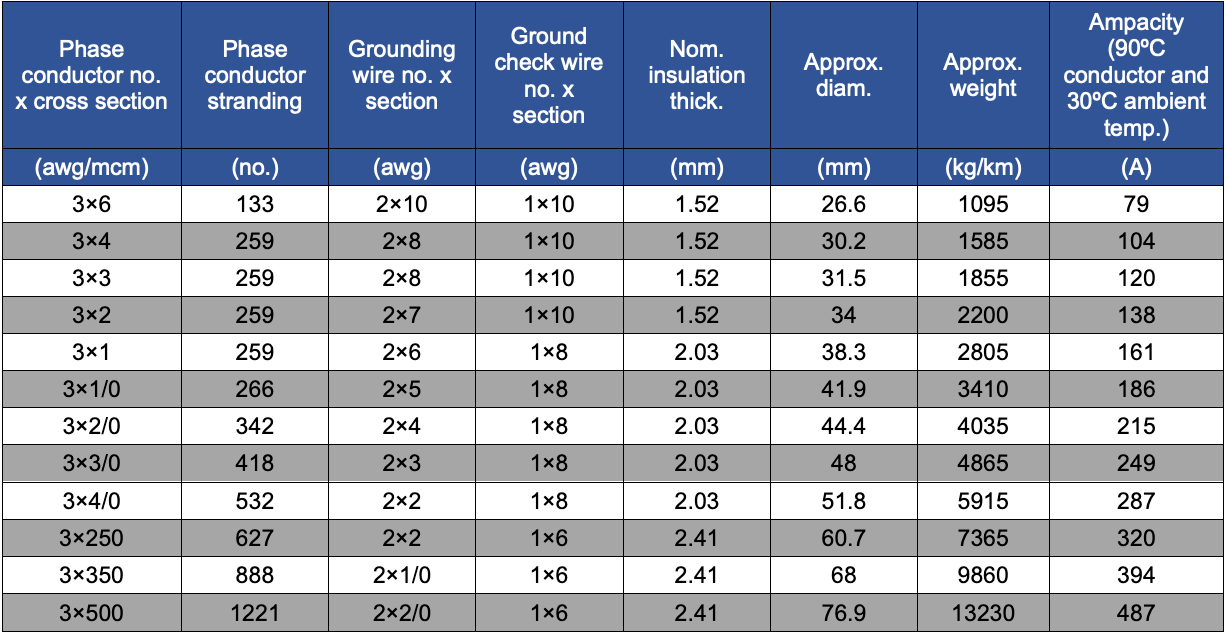

Specification
